Viewing Events

Overview

The Events tables allow a user with proper privileges (the manage-events role, assigned to eleveo.admin by default) to view the login and admin events log from within UI.

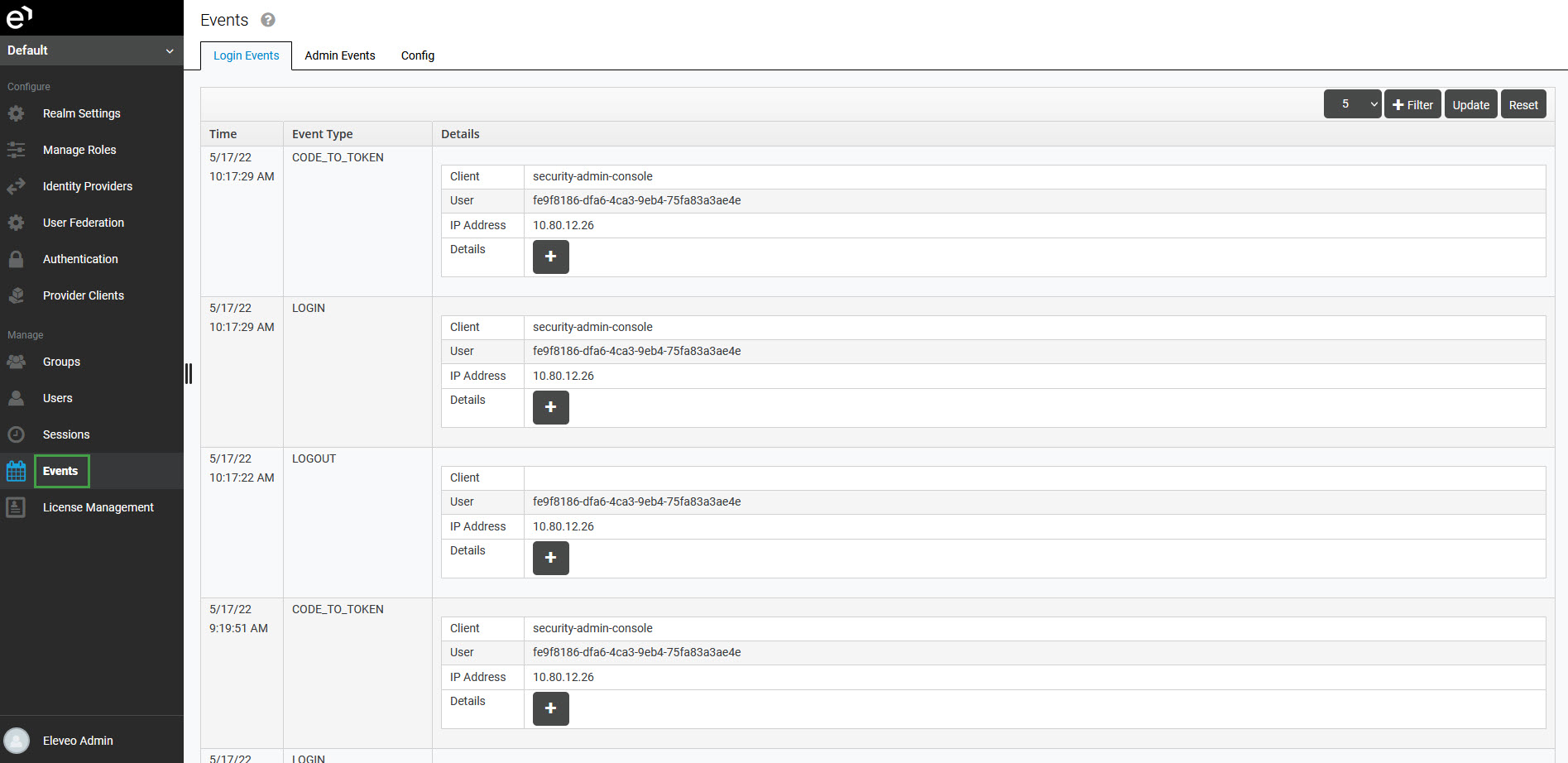

To view the events, click Events within the navigation tree on the left. The Events screen will display.

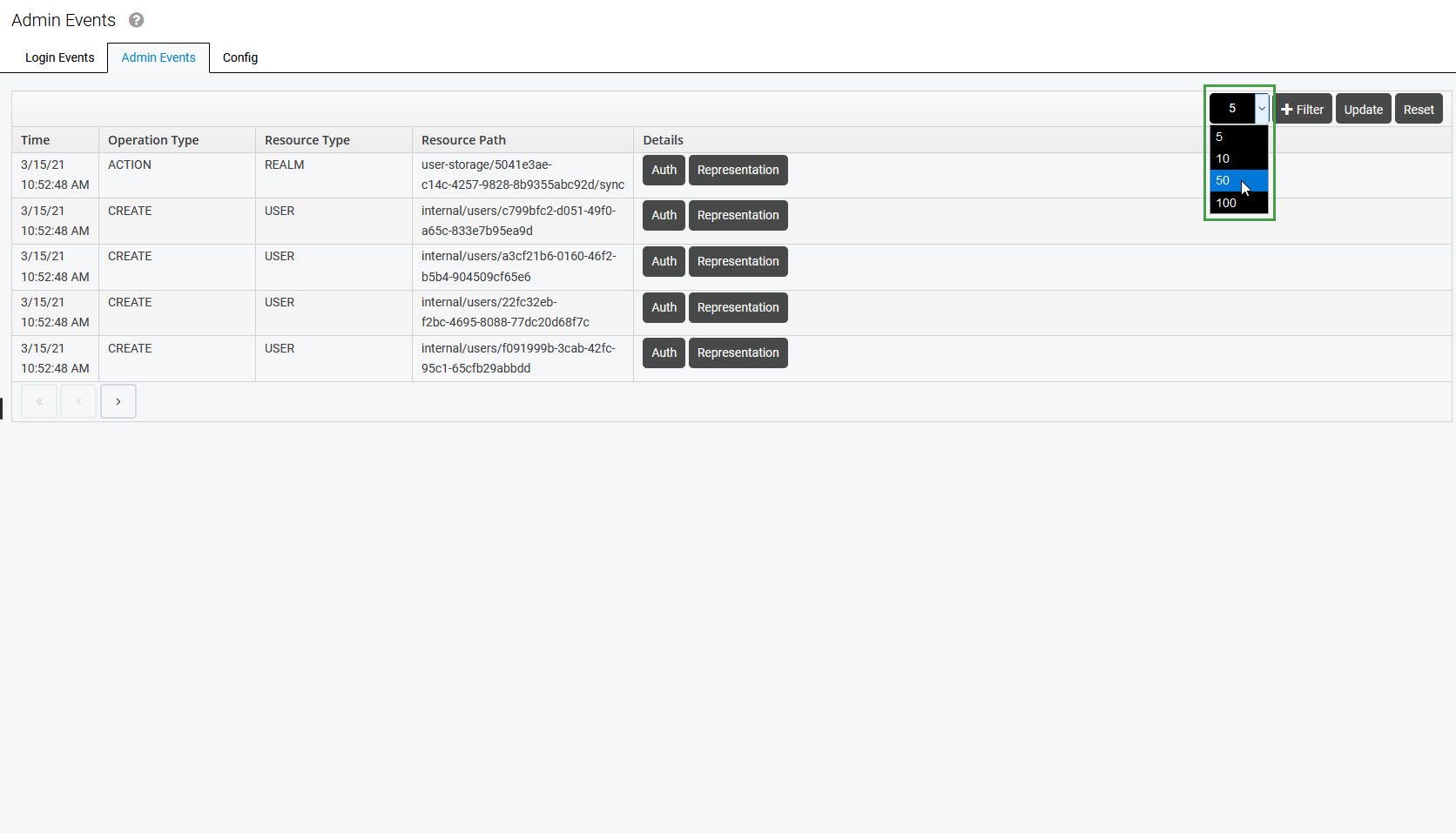

Use the drop-down menu in the top right corner to select how many events should be displayed on the page.

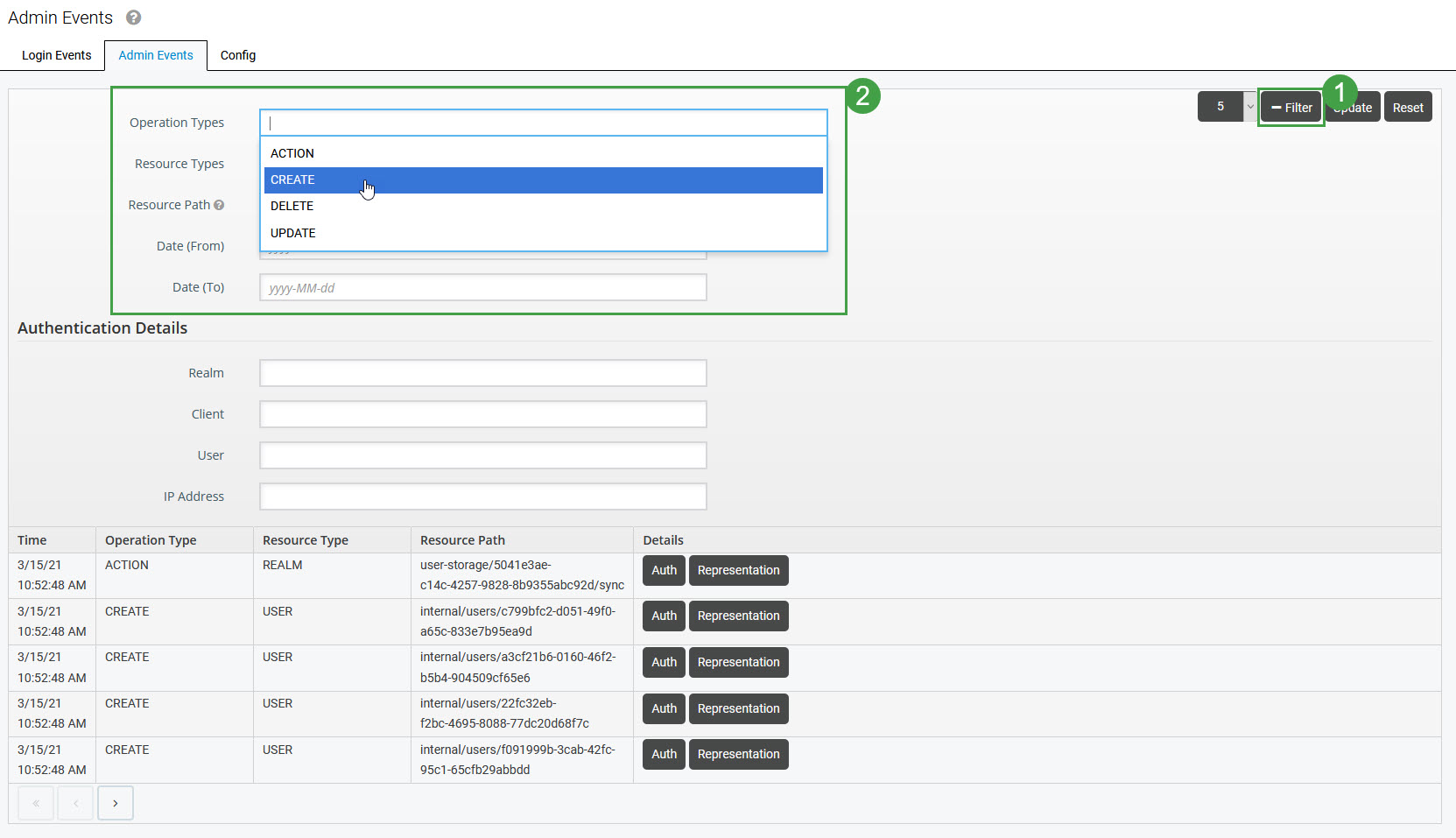

Click Filter in the top right corner to expand the filtering options.

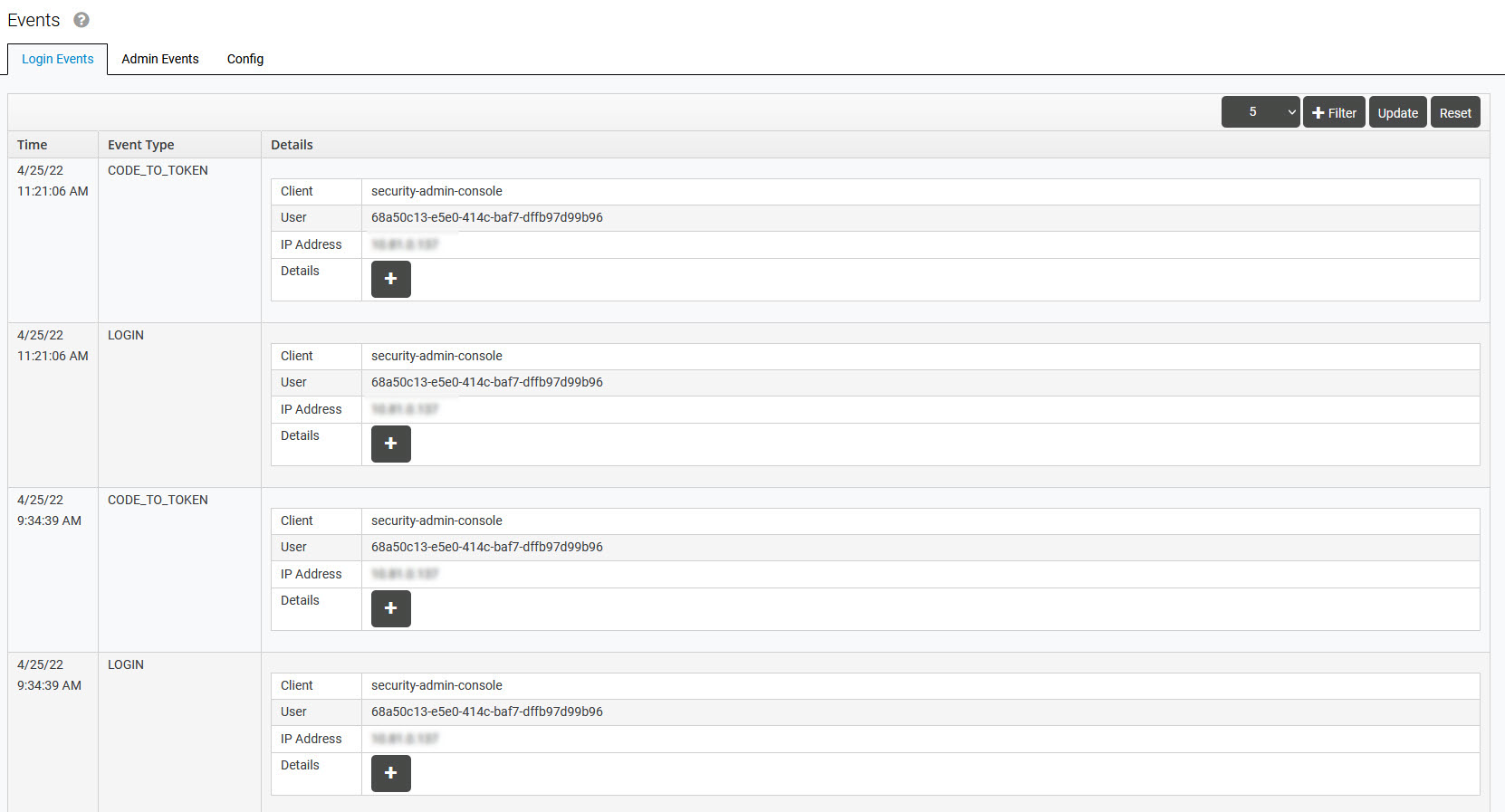

Login Events

All access-related activities performed by users (for example login, logout, requesting a token, etc.) are recorded for auditing purposes in the table on the Login Events tab.

Login Events can be viewed by:

  • any user with the manage-events role (eleveo.admin by default) –  in the User Management admin console (Events > Login Events tab)

  • any user with the VIEW_AUDIT permission for QM (default_ccmanager by default) – in the Quality Management console (Administration > Audit Log)

The table contains all logged events and their details:

  • Time – exact time of the event

  • Event Type – type of the event (for example LOGIN, LOGOUT etc.)

  • Details:

    • Client – ID of the client to which the user is connecting

    • User – IP of the user

    • IP address – IP address from which the user is connecting

    • Details – Further details about the token

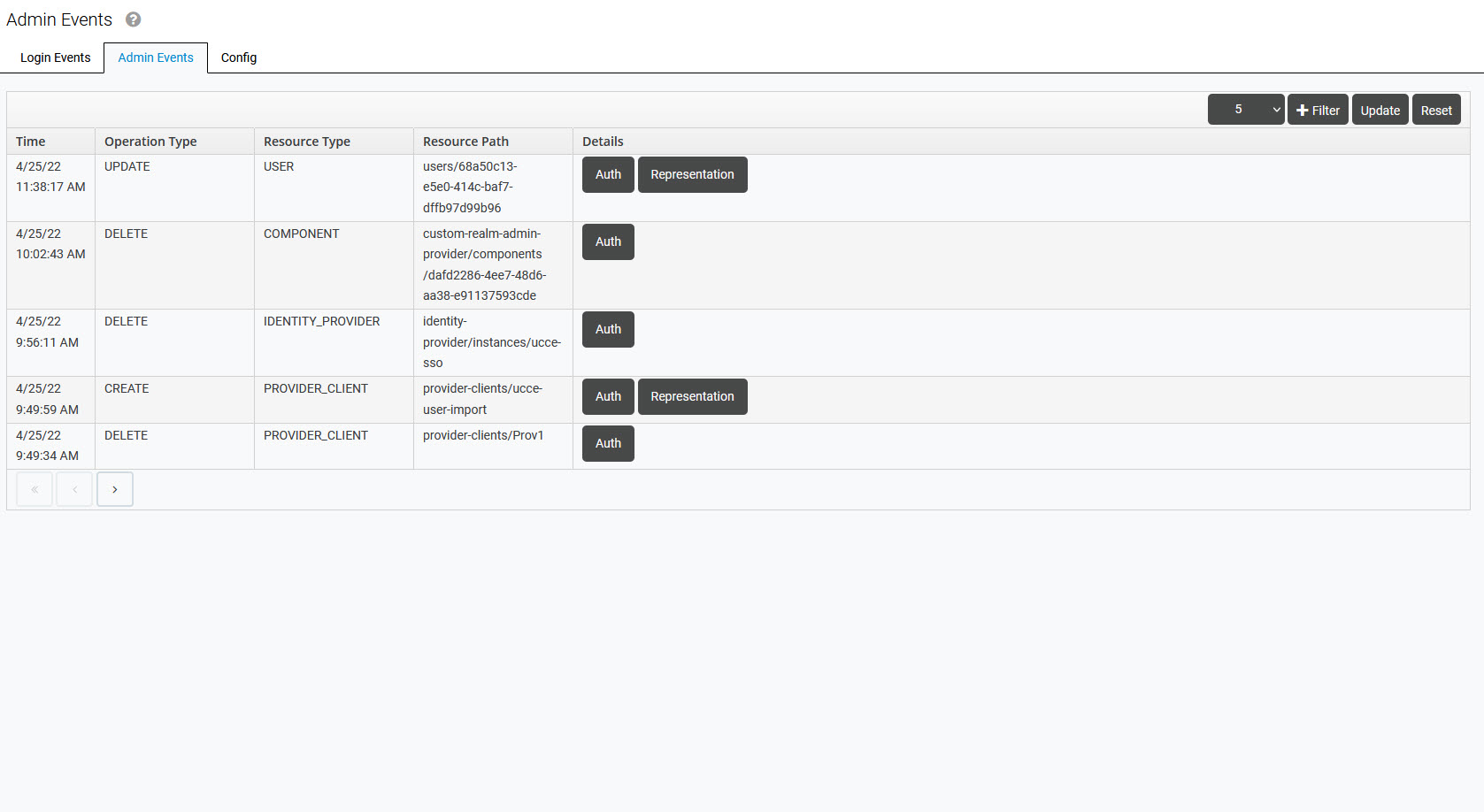

Admin Events

All actions performed by any user with enough privileges to complete these actions within the admin console are recorded for auditing purposes in the table on the Admin Events tab.

The table contains all logged events and their details:

  • Time – exact time of the event

  • Operation Type – type of the event (for example CREATE, UPDATE, DELETE, etc.)

  • Resource Type – resource which is affected by the event (for example USER, GROUP, etc.)

  • Resource Path – path to the affected resource

  • Details:

    • Auth – authentication details of the user who has triggered the event

    • Representation – JSON content representing the event

Types of Events

The following Admin Events can be logged:

Scope/area

Operation Type

Resource Type*

Description

Users

CREATE

USER

Creating a user

UPDATE


Updating a user's details

DELETE


Deleting a user

DELETE

IMPORTED_USERS

Deleting an imported user

Groups


CREATE

GROUP

Creating a group

UPDATE


Updating a group's details

DELETE


Deleting a group

CREATE

GROUP_MEMBERSHIP

Creating an assignment of a user to a group (group membership)

UPDATE


Updating a group membership

DELETE


Deleting a group membership

CREATE

CLIENT_ROLE

Creating a client role

UPDATE


Updating a client role

DELETE


Deleting a client role

CREATE

CLIENT_ROLE_MAPPING

Creating a mapping between a user and a client role

UPDATE


Updating a mapping between a user and a client role

DELETE


Deleting a mapping between a user and a client role

CREATE

REALM_ROLE

Creating a realm role

UPDATE


Updating a realm role

DELETE


Deleting a realm role

CREATE

REALM_ROLE_MAPPING

Creating a mapping between a user and a realm role

UPDATE


Updating a mapping between a user and a realm role

DELETE


Deleting a mapping between a user and a realm role

Custom roles


CREATE

CUSTOM_ROLE

Creating a custom role

UPDATE


Updating a custom role

DELETE


Deleting a custom role

CREATE

CUSTOM_ROLE_MAPPING

Creating a mapping between a user and a custom role

UPDATE


Updating a mapping between a user and a custom role

DELETE


Deleting a mapping between a user and a custom role

Provider clients

CREATE

PROVIDER_CLIENT

Creating a provider client

DELETE


Deleting a provider client

Password management

ACTION

USERS

Changing a local users' password

Realm settings

UPDATE

REALM_SETTINGS

Updating a realm's setting

Supervisors


CREATE

SUPERVISOR_MEMBERSHIP

Assigning a group to a user so that the user can review this group (a supervisor membership)

UPDATE


Updating a supervisor membership

DELETE


Deleting a supervisor membership

Users extended JPA

UPDATE

USER_EXTENSION

Update of the user data extension (mainGroup, timezone and syncEnabled values)

Data Importer (pusher)

ACTION

PUSHER_SYNC

Synchronization with data importer (on-premise data provider has called API and data it sent are being processed and imported to User Management)

License-api-provider

CREATE

LICENSE

Creating a license

*The following Resource Types are custom and were added on top of existing ones: CUSTOM_ROLE, CUSTOM_ROLE_MAPPING, PUSHER_SYNC, PROVIDER_CLINT, REALM_SETTINGS, SUPERVISOR_MEMBERSHIP, USER_EXTENSION, LICENSE

Synchronization Events

Note that user federations' synchronization is logged granularly. The following events can be logged as a part of it:

  • CREATE | UPDATE

    • USER

    • GROUP

    • CLIENT_ROLE

    • REALM_ROLE

    • REALM_ROLE_MAPPING

    • CLIENT_ROLE_MAPPING

    • GROUP_MEMBERSHIP

    • SUPERVISOR_MEMBERSHIP

Click here to expand the example...

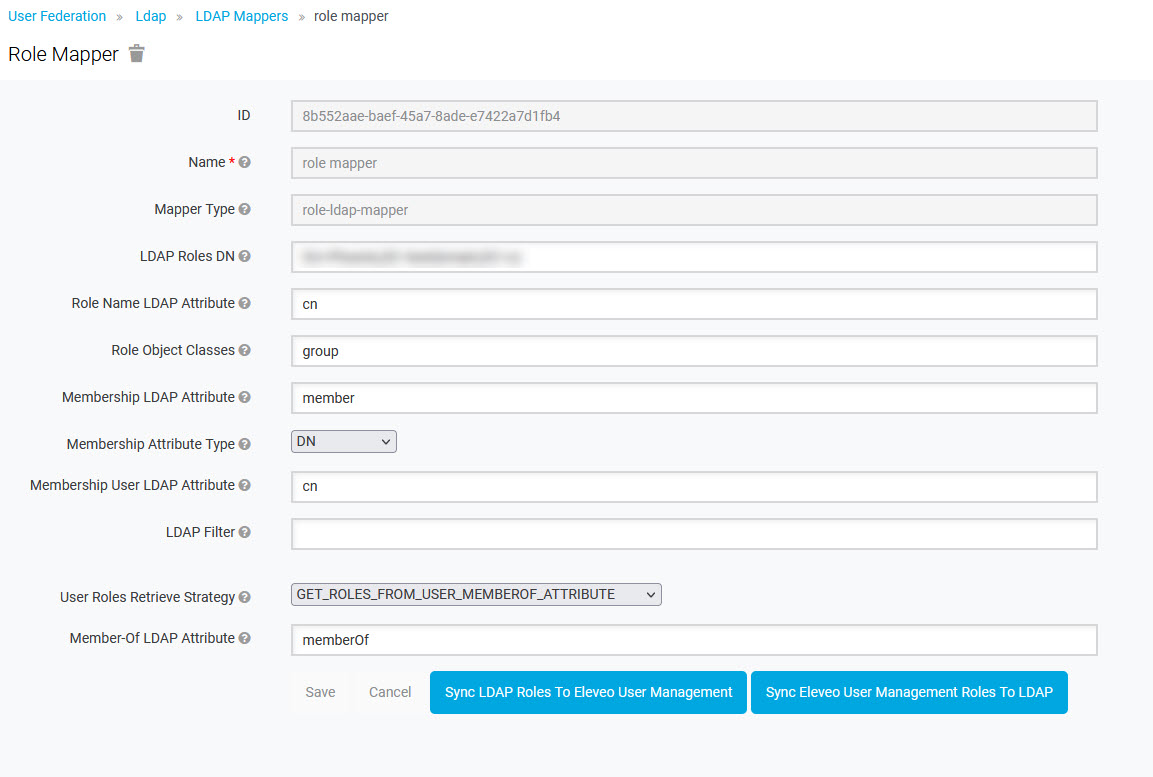

The following mapper was created for the LDAP User Federation:

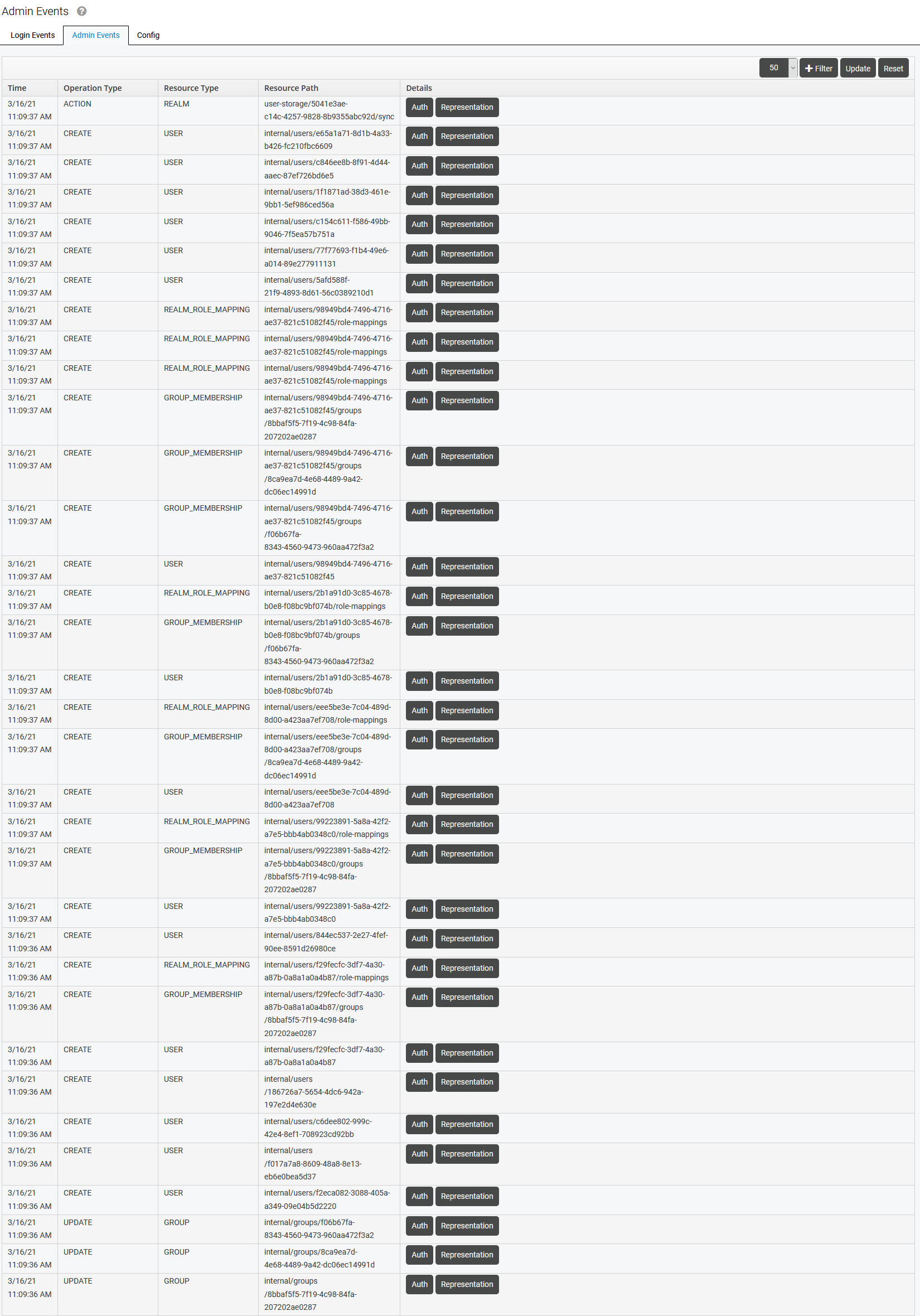

As a result of running the synchronization of users, all the following events are logged:

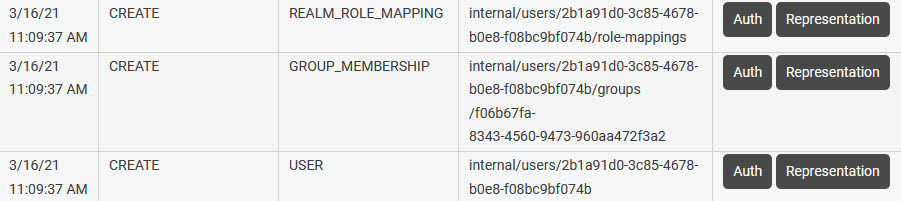

For each of the imported users, the events of user creation, assigning group membership and role mapping are logged:

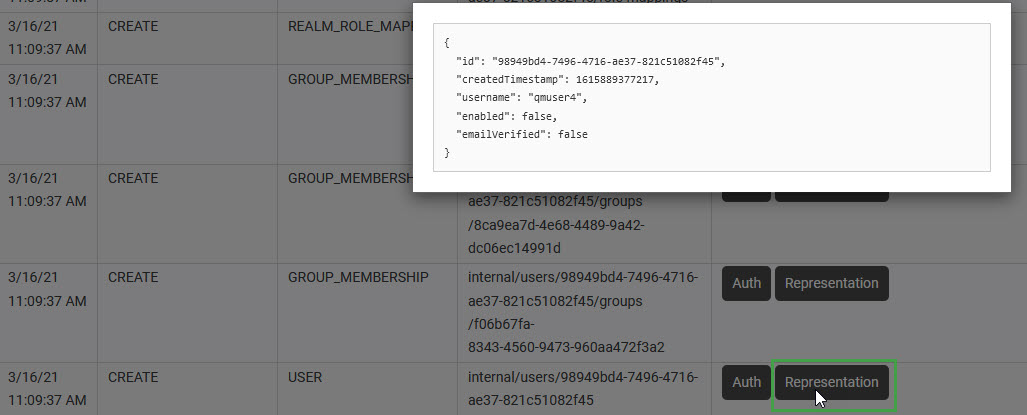

Clicking the Representation button displays the details in a JSON format:

Configuration

The Events settings are configured automatically during the realm registration process so that there is no need to change them or configure them manually. To ensure that Events are set as required, ensure that they are configured in the following way:

  • Event Listeners selected:

    • keycloak-audit-log-provider

    • keycloak-amqp-event-provider

    • jboss-logging

    • keycloak-event-provider

  • in the Login Events Settings section:

    • Save Events: ON

  • in the Admin Events Settings section:

    • Save Events: ON

    • Include Representation: ON

The above configuration ensures that activities triggered from within User Management (Login Events) will be included in the Audit Log in Quality Management. Read more about using Audit Log.

Events Cleanup

It can be useful to configure an expiration period for Login and Admin Events. Expired events will be automatically deleted from the database to avoid consuming too much space. By default, expiration is not set (events are not deleted).

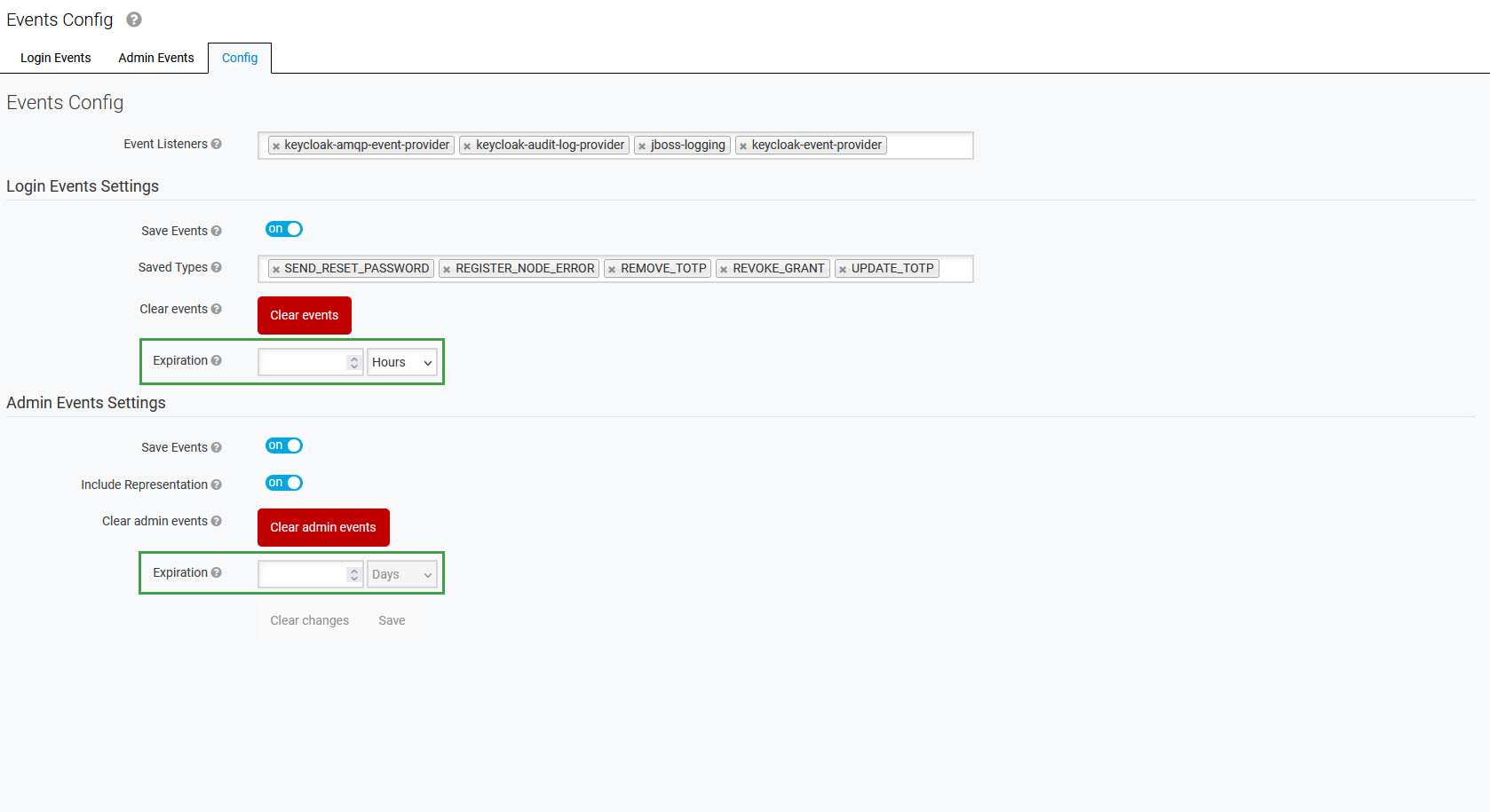

To configure the expiration period, go to the Config tab and set the Expiration values for Login Events and Admin Events (separately). Then click Save.
