Intraday Management

Intraday Management is a set of charts based on live contact center data imported in 15-minute intervals. It compares data from the last 12 hours with the original forecast and then calculates estimated trend data (Intraday forecast) for the next 12 hours. Results are displayed on the Intraday Management screen.

An Intraday forecast enables managers to correct staffing levels and adjust the schedule.

For Intraday Management functionality to work properly, configure the cron job for importing historical data to run every 15 minutes:

  • for Webex Contact Center or Zoom Contact Center integrations in ETL Management UI

  • for UCCE and UCCX Data Importers in Rancher configuration (Scheduler cron expression for historical data)

Note:

  • Only users assigned the WFM_VIEW_INTRADAY and WFM_VIEW_INTRADAY_EVENTS roles can see the Intraday Management tab in the navigation tree. The role WFM_VIEW_INTRADAY_NOTIFICATION should be assigned to see notifications settings and the WFM_EDIT_INTRADAY_NOTIFICATION  role should be assigned to users who edit notification settings. Read more about Roles.

  • The data importer imports data from the contact center every 15 minutes. The charts update within the user interface at the same interval. The import schedule cannot be modified.

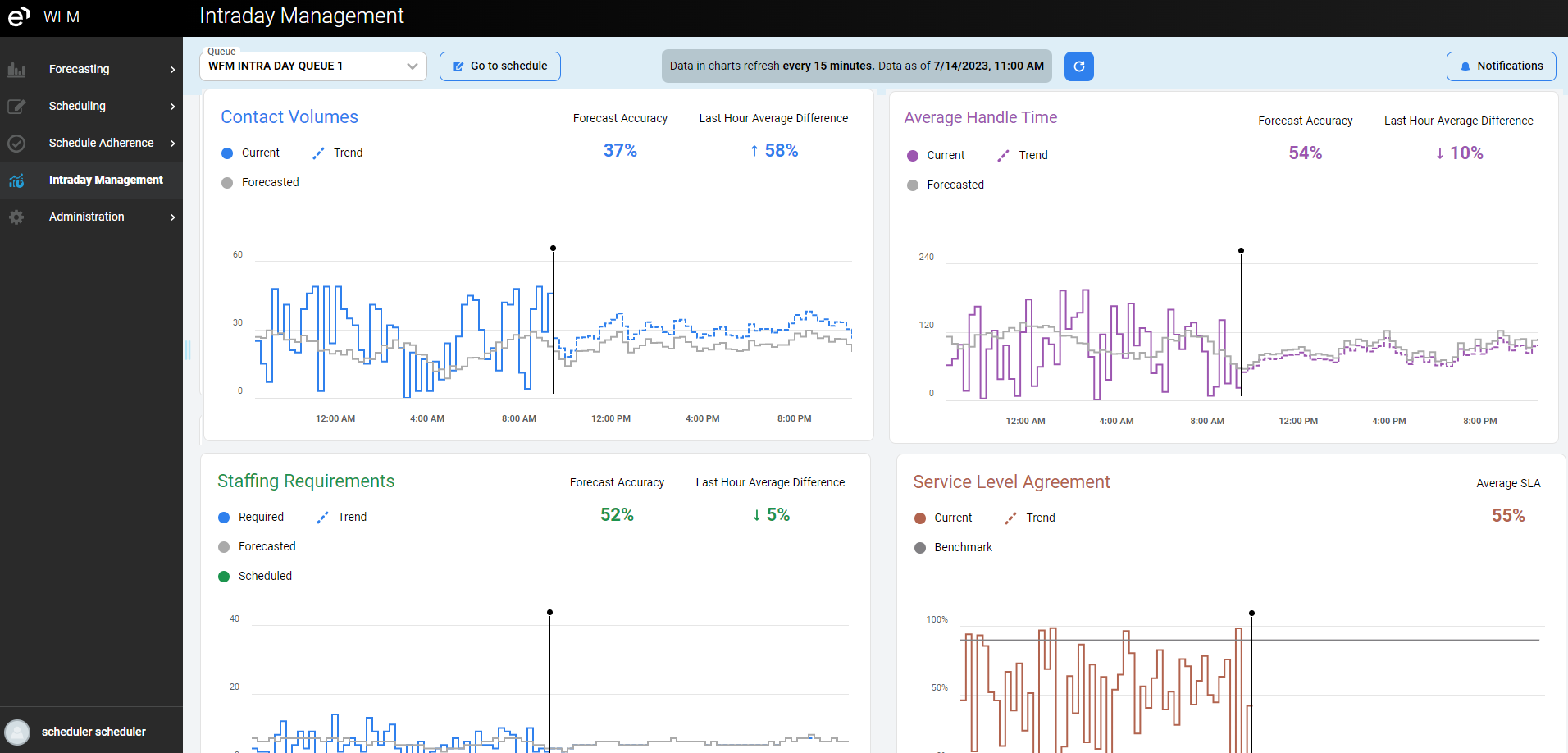

To display the charts, click the Intraday Management module within the navigation tree. The Intraday Management screen will display.

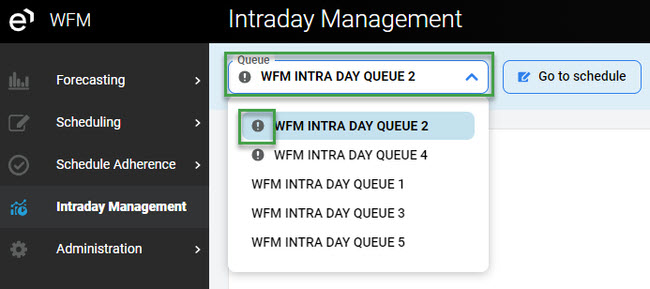

The dropdown menu in the top left corner allows you to select the queue for which you want to see the charts. Only queues with available data are displayed in the menu. If an alert has been triggered for one of the queues, the icon with the exclamation mark appears next to the queue name in the dropdown menu.


Video Spot

In this video tutorial, our trainer provides tips and tricks for setting up a review in the Review Scheduler.


Charts Overview

There are four charts available on the Intraday Management tab:

  • Contact Volumes – A metric used in call centers to measure the number of incoming calls in a given period. High call volume can impact agents' workload, affect staffing needs, and dictate call center costs.

  • Average Handling Time – A customer service metric that measures the average length of a customer's call. It's a standard KPI for contact centers.

  • Staffing Requirement – A metric used in call centers to determine the number of staff to allocate based on call volume, AHT, and SLA of the given queue.

  • Service Level Agreement – A set of guidelines that define the customer service standards that support agents must meet during customer interactions.

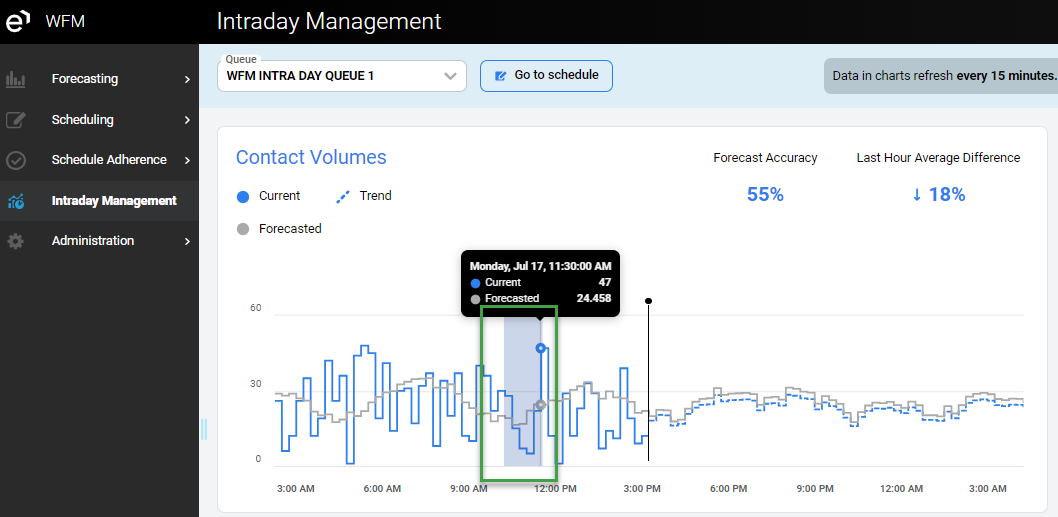

Each of the diagrams displays several lines. To zoom in on any part of the diagram, select a time range using the mouse:

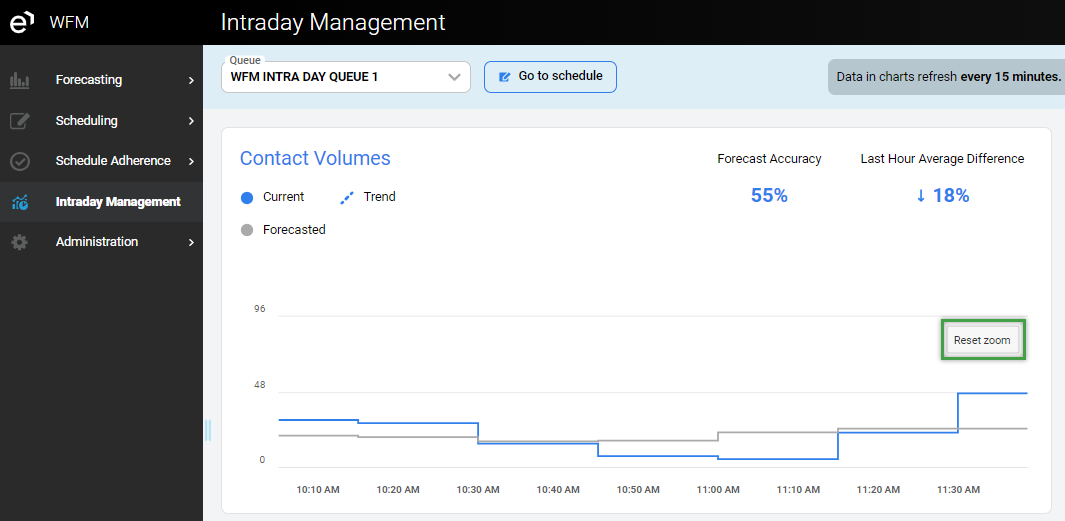

The selected time range will become focused (more detailed). To reset the view, click Reset zoom.

Data Refresh

The Intraday Management tab is refreshed automatically when new data is imported, and the trend is re-calculated.

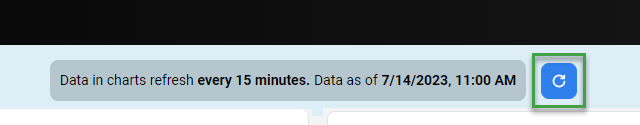

Additionally, it may be necessary to refresh the page manually when it has not been refreshed for a while, new data is received from the contact center and the charts have not been updated, or something in the calculation fails and the page wasn't refreshed automatically. In such a case, click the Refresh button. This button cannot be used to force data import earlier than scheduled (every 15 minutes).

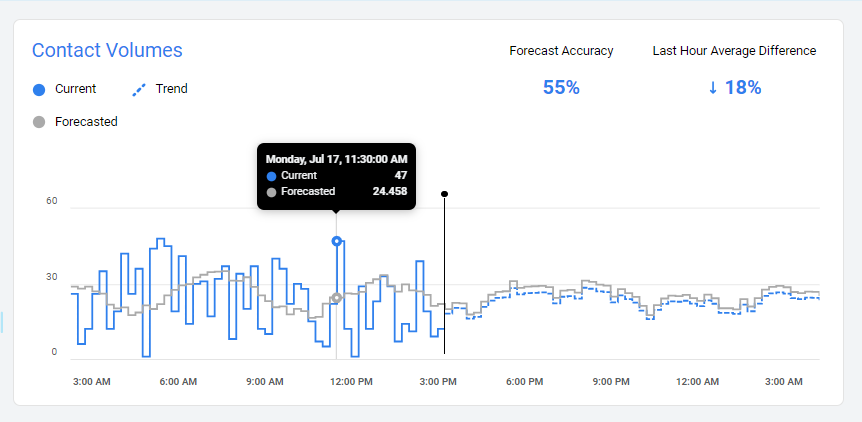

Contact Volumes

The Contact Volumes chart shows the difference between forecasted and actual contact volumes.

  • Forecast Accuracy – the percentage of forecast accuracy for the past 13 hours.

  • Last Hour Average Difference – the average percentage difference between forecasted and actual volumes in the previous hour.

The following lines are displayed on the diagram:

  • Current relevant data about contact center activity. That line displays the number of incoming calls in a given period.

  • Trend trend data about contact center activity. That line displays re-forecasted contact volumes based on current contact center data.

  • Forecasted forecasted data about contact center activity. A forecast is an estimate of the amount of incoming contacts that was calculated in the past in WFM.

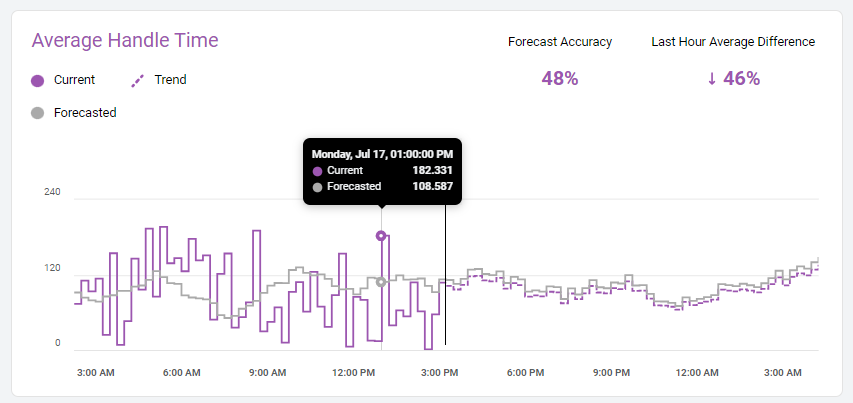

Average Handle Time

The Average Handle Time (AHT) chart shows the difference between forecasted AHT and actual AHT.

  • Forecast Accuracy – the percentage of forecast accuracy for the past 13 hours

  • Last Hour Average Difference – the average percentage difference between forecasted and actual AHT in the previous hour

The following lines are displayed on the diagram:

  • Current relevant data about contact center AHT. That line displays the average handle time of a customer's calls.

  • Trend trend data about contact center AHT. That line displays re-forecasted AHT based on current contact center data.

  • Forecasted original production forecast for AHT.

Staffing Requirement

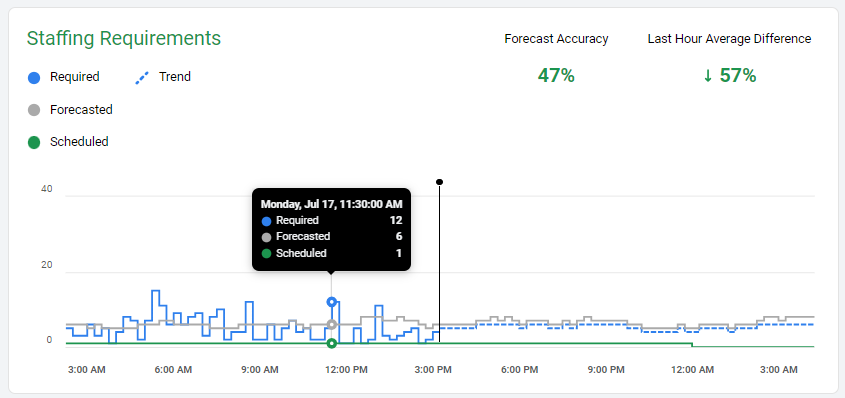

The Staffing Requirements chart shows the difference between forecasted and actual staffing requirements.

  • Forecast Accuracy – the percentage of forecast accuracy for the past 13 hours

  • Last Hour Average Difference – the average percentage difference between forecasted and actual staffing requirements in the previous hour

The following lines are displayed on the diagram:

  • Required Staff – data about how much stuff is needed to cover actual contact volumes

  • Trend trend data about contact center staffing requirements. That line displays re-forecasted staffing requirements based on contact volumes and AHT trends. The staffing requirement trend is calculated without shrinkage.

  • Forecasted – forecasted data about contact center staffing requirements. A forecast is an estimate of the amount of resources needed that was calculated in the past in WFM.

  • Scheduled – work contribution assigned to a given queue.

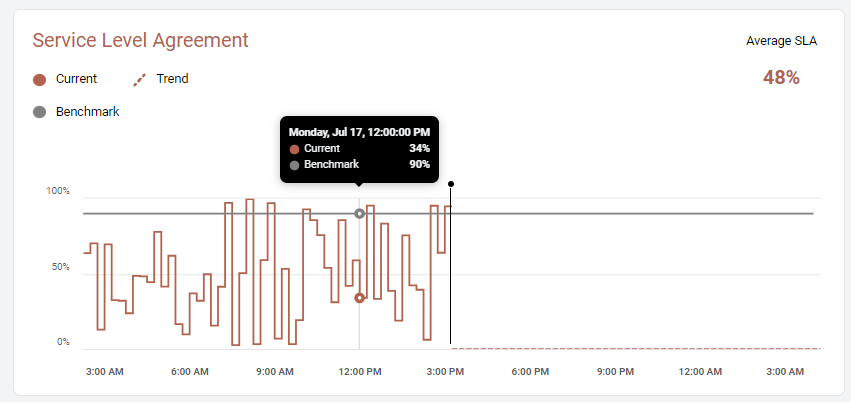

Service Level Agreement

A call center SLA is a set of guidelines that specify the customer service standards that support agents must meet during customer interactions.

Call centers determine their SLAs. The rate at which these objectives are met is called the call center service level. For example, standard objectives may include 80% of calls answered before 20 sec, 90% of chats accepted within 10 seconds, or 100% of emails responded to within 24 hours.

  • Average SLA – the percentage of average SLA for the past 13 hours.

The following lines are displayed on the diagram:

  • Current – Current SLA imported from the contact center

  • Trend – Estimated service level considering trend volume, AHT, and staffing scheduled to the given queue

  • Benchmark - Required service level – the percentage of calls that need to be answered within a given time period (for example, 80% in 20 s means that 80% of calls need to be answered within 20 seconds). Service level can be configured for every queue separately; for details, check the documentation section Managing Queues.

Using Intraday Forecast

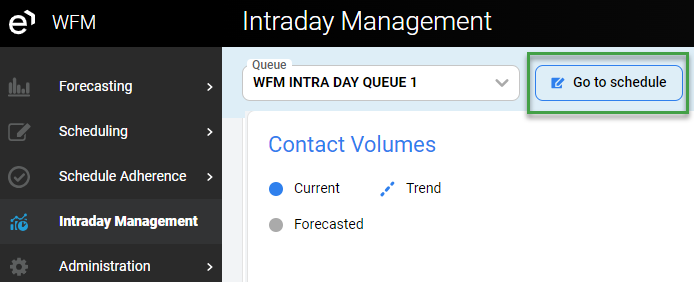

To use the Intraday forecast in a schedule, click the Go to Schedule button at the top of the screen.

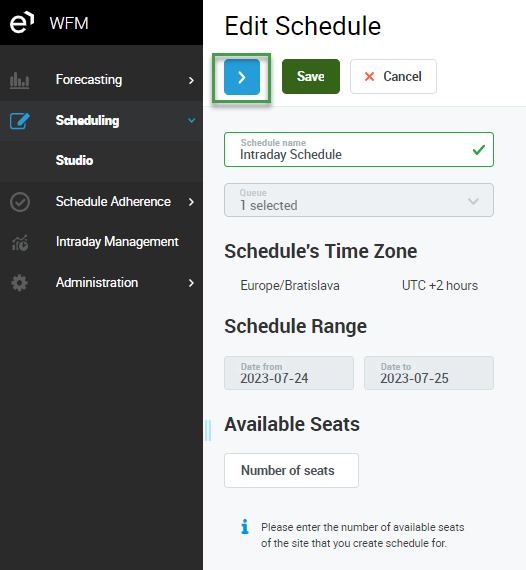

The button will redirect you to the Scheduling > Edit schedule screen of the production schedule for the selected queue. Detailed information about working with schedules can be found in the Adding a New Schedule and Editing a Schedule pages.

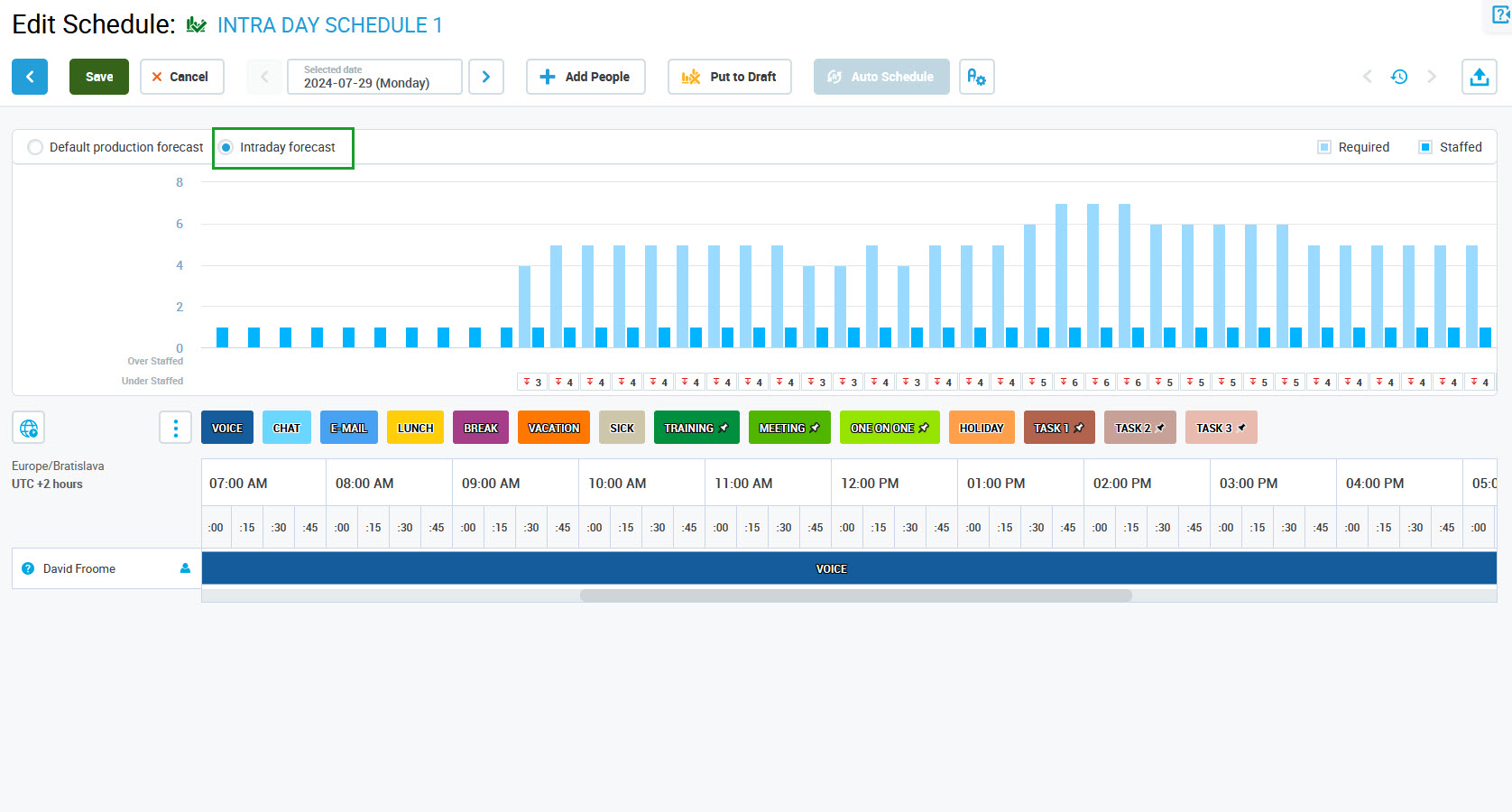

To create a schedule based on an intraday forecast, switch from the Default production forecast to the Intraday forecast. Each time the forecast type changes, work contribution and staffing recalculates. The auto scheduling engine generates a schedule based on the forecast selected at that moment. When the Intraday forecast is selected, auto scheduling allows planning for the next 12 hours.


Notifications

INFO

The role WFM_VIEW_INTRADAY_NOTIFICATION should be assigned to see notification settings and the WFM_EDIT_INTRADAY_NOTIFICATION  role should be assigned to users who edit notification settings. Read more about Roles.

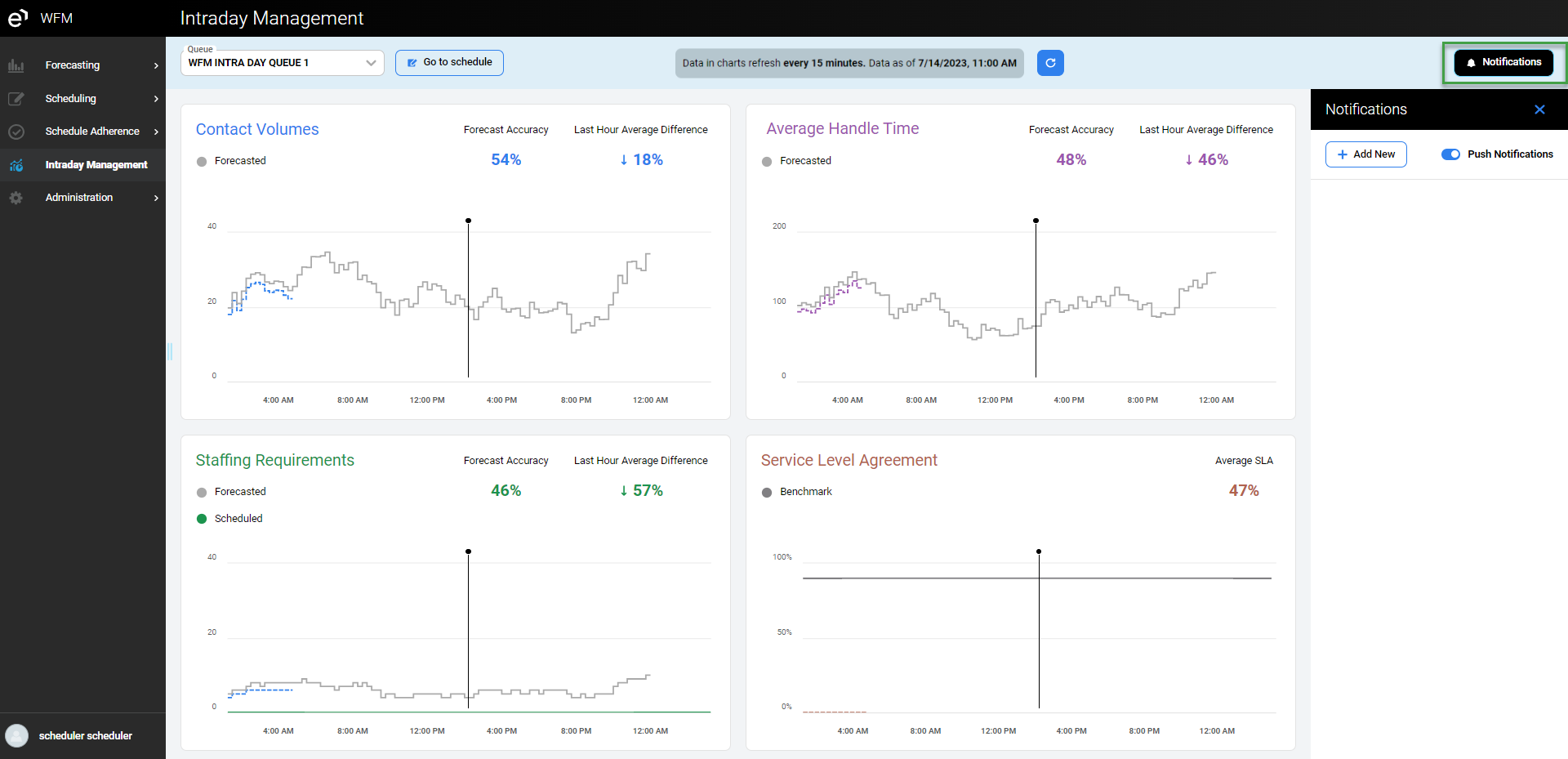

The settings for the notifications are located in the top right corner. Click Notifications to open the tab.

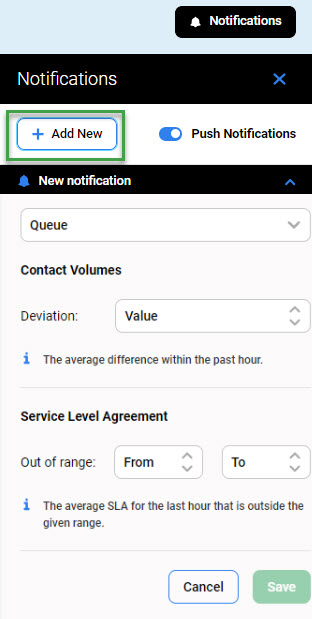

Click Add New to start the configuration process.

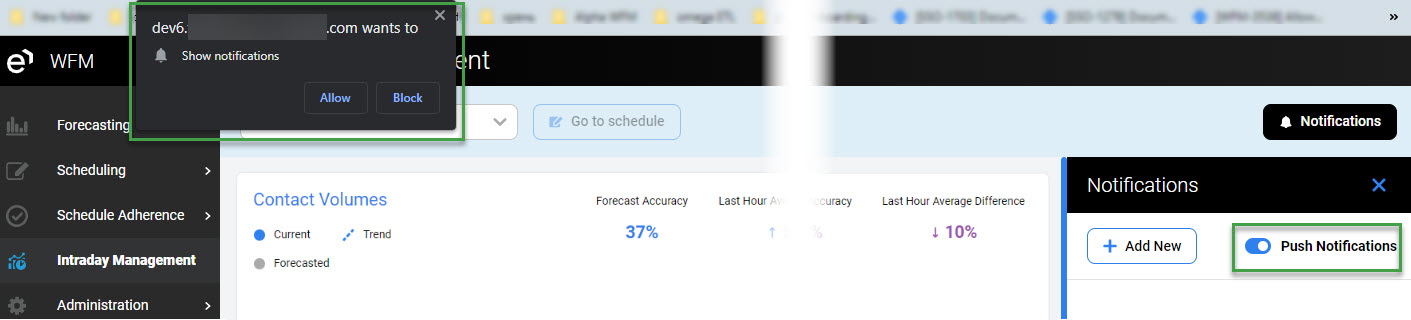

Push Notifications can be enabled for all subscribed Intraday Management users. They should be configured separately for each queue. Once push notifications are enabled, a pop-up window appears with the option to allow or block notifications for the Intraday Management module.

  • Queue – Select the queue from the dropdown menu that you want to be configured for notifications

    • Contact Volumes chart can be configured for notifications.

      • Deviation – Enter the value for the average difference in the past hour. If the average difference is more or less than the configured value, a notification is triggered or a push message is sent if configured.

    • Service Level Agreement chart can also be configured for notifications.

      • Out of range – Enter the values from and to. If the average SLA for the last hour is outside the given range, a notification is triggered or a push message is sent if configured.

Example:
